The CXA1033P AM single chip radio integrated circuit

Published:2011/7/11 21:39:00 Author:Borg | Keyword: single chip, integrated circuit | From:SeekIC

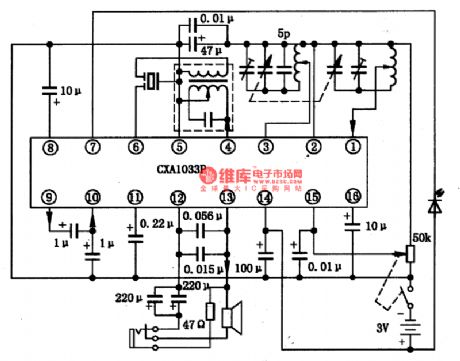

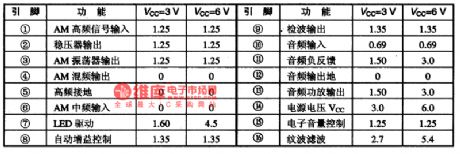

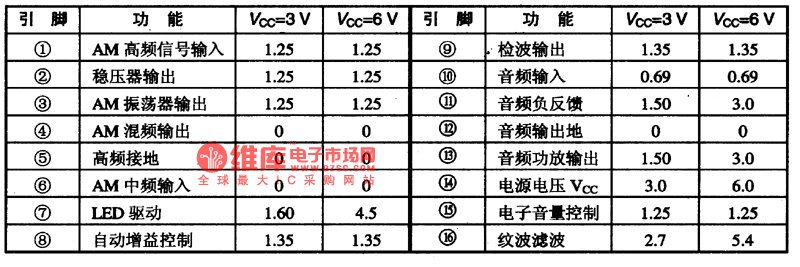

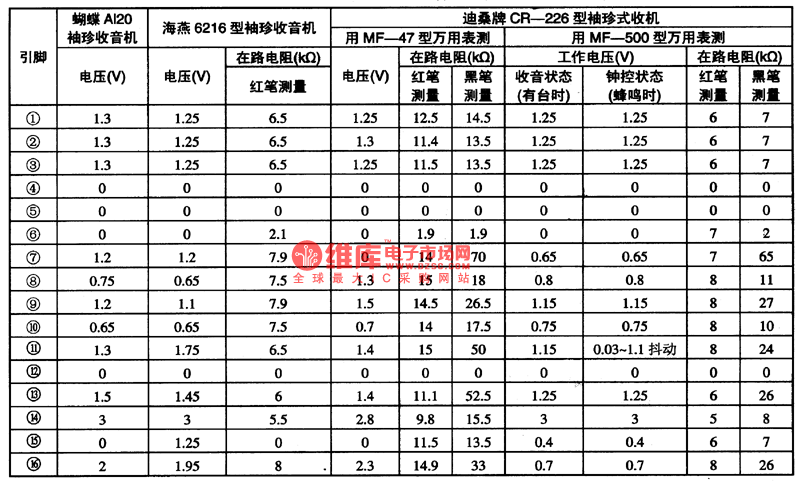

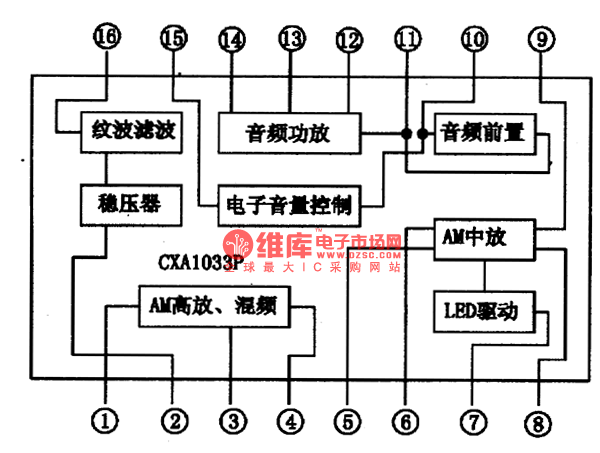

CXA1033P is an AM single chip radio circuit which is produced by Sony, which is used in the low-voltage radio and recorder. 1.the internal circuit and pin functions of CXA1033P CXA1033P includes the AGC, mix, INTREQ, detection, LED drive and audio pre-stage, audio power amplifier, etc. The internal circuit of the integrated chip is shown is figure 1. The IC is in 16-pin dual in-line package, whose pin functions and data are shown in figure 1, in figure 2 is the tested data of several radios composed of CXA1033P.
