The AN7114 audio power amplifier circuit

Published:2011/6/20 21:27:00 Author:Seven | Keyword: power amplifier | From:SeekIC

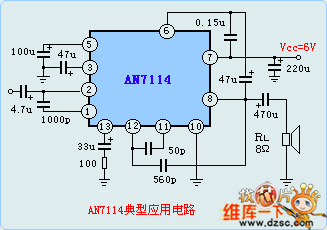

When Vvv=6.0V,THD=10% and RL=8Ω, the output power of AN7114 is 0.6W, the noise output is 3mV.Limit parameters: Vcc=11V, cooling power (without radiators) is 1.2W, which is 2.25W with radiators. The working temperature is -20—70℃, it is suitable for portable radios and stereo equipment as the power amplifier.
