The ADV7175 and ADV7176 digital video encoding integrated circuits

Published:2011/7/20 1:32:00 Author:Borg | Keyword: digital, video encoding, integrated circuits | From:SeekIC

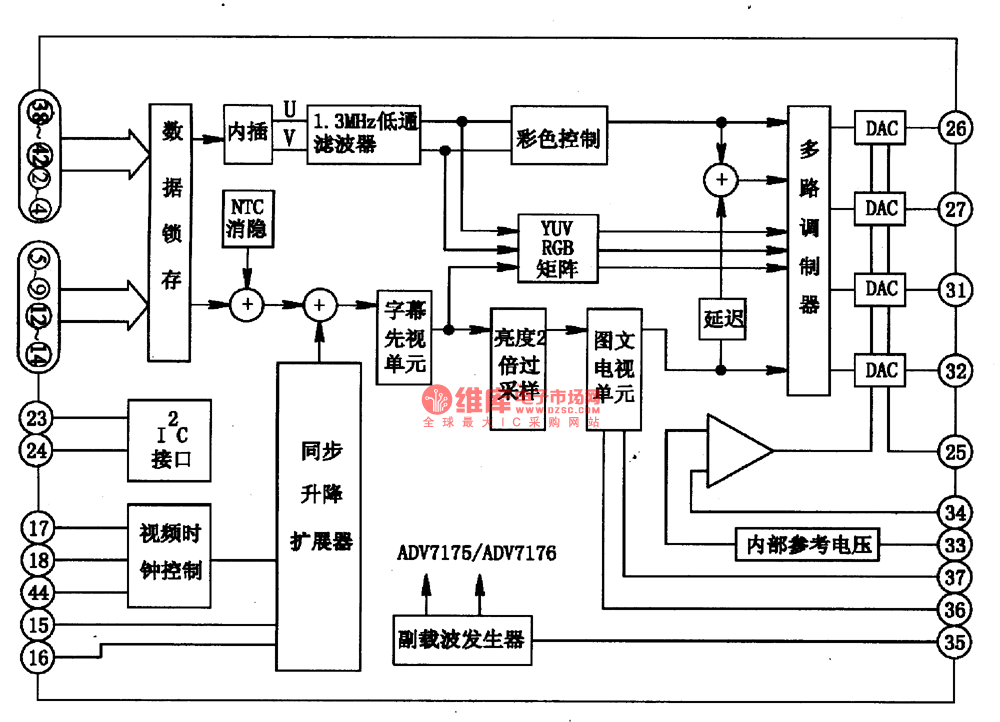

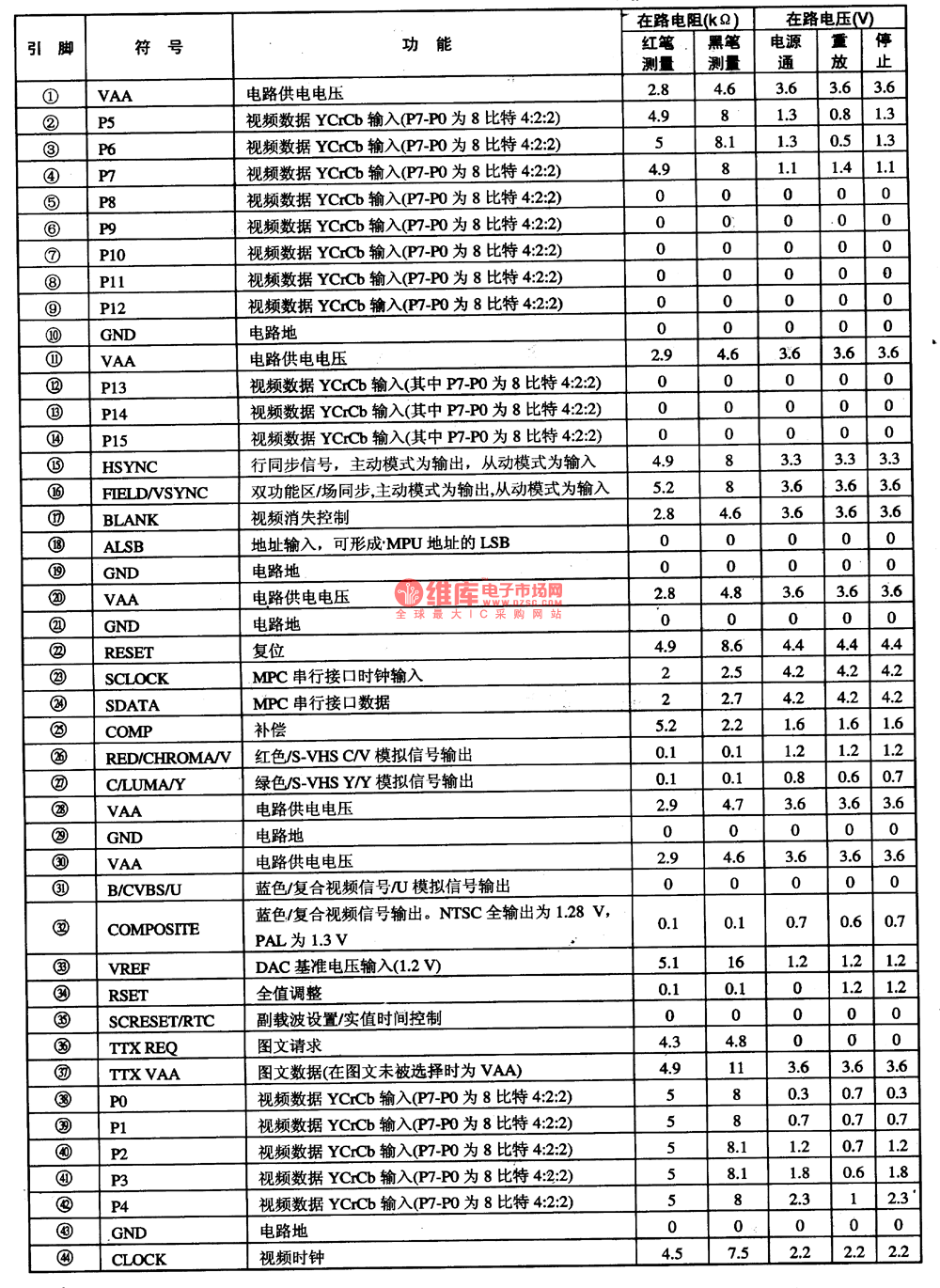

1.pin functionsADV7175 and ADV7176 integrated circuits support many standards of CCIR601/624/656 and SMPE170M, which is in I2C control method, and it can convert the YCRCB video data of 8 or 16-bit into Y, U and V in the patten of 4:4:4, and the 4 internal lObitDAC can output R, G and B, or Y, U and V, or S-VHS and Y/C or mixed video signals. It contains the low-pass filter, color control circuit YUV, RGB matrix circuit, brightness double sampling circuit, image-text TV units and so on.
