TWO_WIRE_TO_FOUR_WIRE_AUDIO_CONVERTER

Published:2009/7/1 4:15:00 Author:May | From:SeekIC

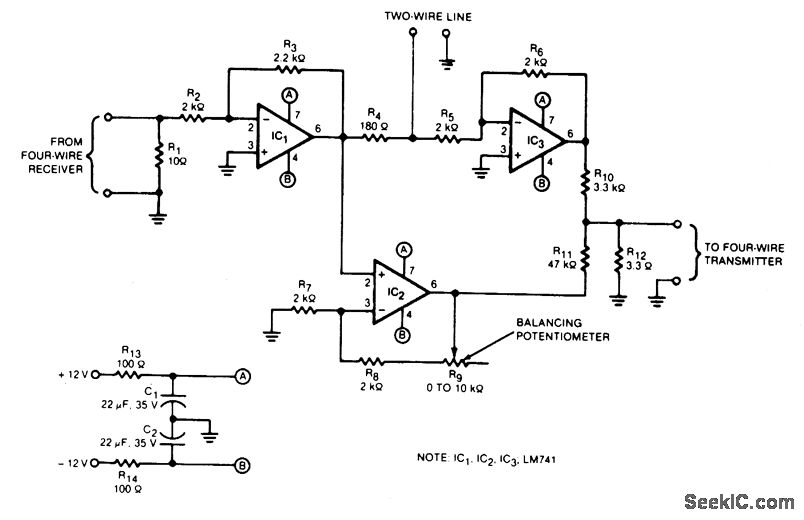

This converter circuit maintains 40 dB of isolation between the input and output halves of a four-wire line while permitting a two-wire line to be connected. A balancing potentiometer, Rg, adjusts the gain of IC2 to null the feed-through from the input to the output. The adjustment is done on the workbench just after assembly by inserting a 1 kHz tone into the four-wire input and setting Rg for minimum output signal. An 82 ohm dummy-load resistor is placed across the two wire terminals.
