TWO_SPEED_SERVO_MOTOR_DRIVE

Published:2009/7/17 1:41:00 Author:Jessie | From:SeekIC

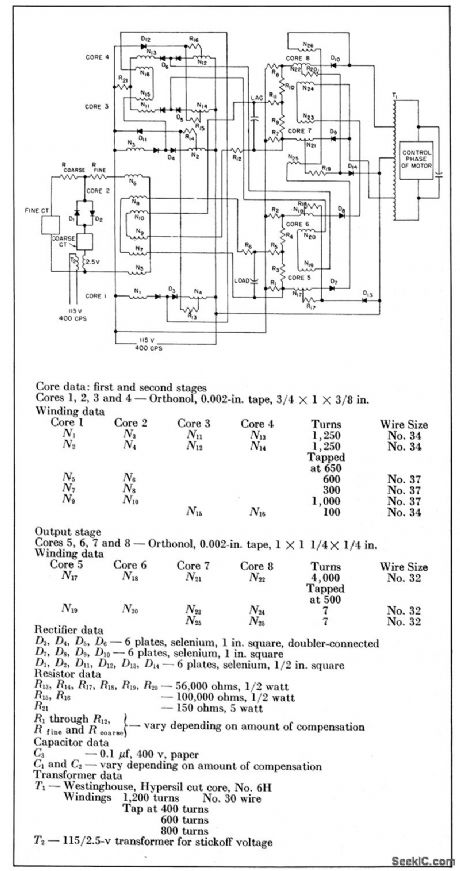

Consists of two conventional half-wave bridge-type stages driving full-wave slave-type output stage. Designed to replete former electron-tube amplifier of two-phase servo system using fine and coarse control transformers.-J. Markus, Handbook of Electronic Control Circuits, McGraw-Hill, N.Y., 1959, p 112.
