TWO_CA3100_WIDEBAND_OPERATIONAL_AMPLIFIERS

Published:2009/7/10 0:32:00 Author:May | From:SeekIC

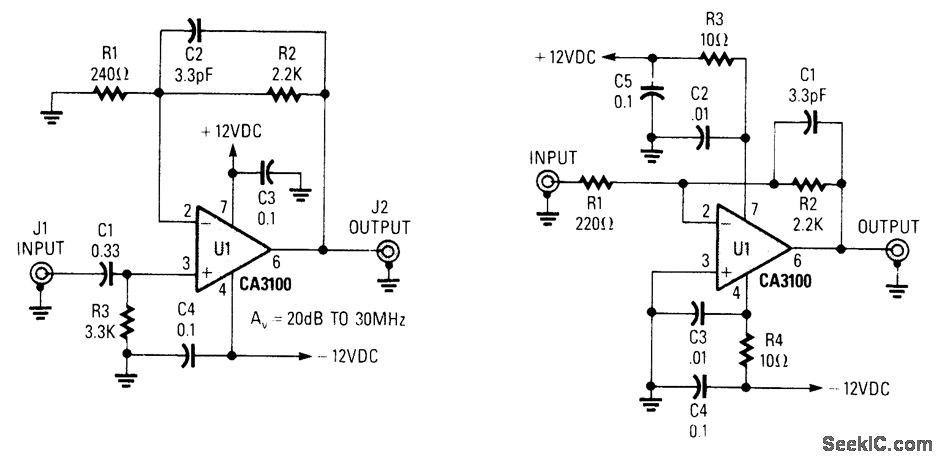

These circuits use the RCA CA3100 wideband amplifier IC. The gain is:These circuits are useful for video applications to 10 MHz. The 3.3-pF capacitors are compensation capacitors. Capacitors on pins 7 and 4 are bypass capacitors to prevent self-oscillations. Figure 76-18(a) is noninverting and Fig. 76-18(b) is an inverting configuration.
