TV signal amplifier 470Mhz-860Mhz

Published:2012/9/12 20:49:00 Author:Ecco | Keyword: TV , signal amplifier, 470Mhz-860Mhz | From:SeekIC

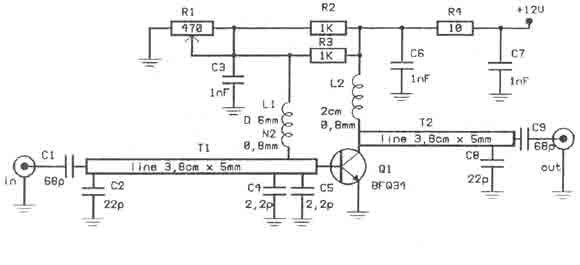

This amplifier can amplify to 10dB the RF signal from antenna working as class A and is based on transistor BFQ34 of Philips. The transistor comes in case SOT122A. You may find the BFQ34T in market but better do not use it as it has different characteristics.
