TV Signal Transformation Amplifier Circuit

Published:2011/5/18 9:41:00 Author:Joyce | Keyword: TV Signal, Transformation, Amplifier | From:SeekIC

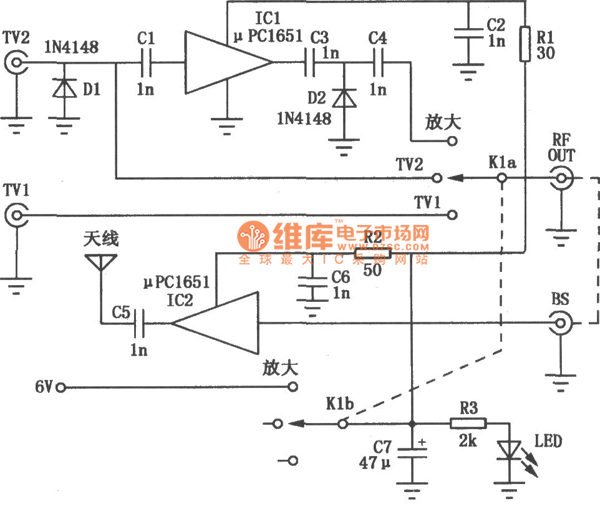

As shown in the figure is a circuit used to transform and amplify all kinds of TV video signals output by various equipment，such as VCR, DVD players with weak output signals to be amplified.It can send the open circuit with radio-frequency signals to an extent with 7m-radius to make it possible for several TV to function at the same time.
