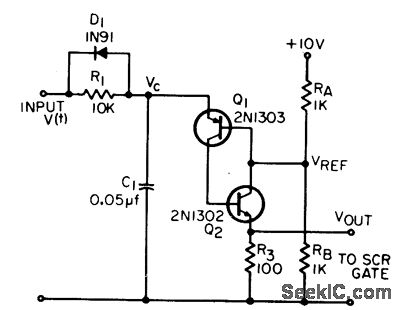

TRANSIENT_REJECTING_SCR_TRIGGER

Published:2009/7/23 21:21:00 Author:Jessie | From:SeekIC

Integrator combined with voltage comparator detects difference in voltage-time areas of data pulses and random transients. Dotc pulses passed are 8 v high and 0.5 millisec wide.-S. B. Marshall, Noise-Rejecting SCR Trigger Circuit, EEE, 14:7, p 102-104.
