TMP87PM36N-R065 single-chip microcomputer integrated circuit diagram

Published:2011/6/23 2:48:00 Author:Ecco | Keyword: single-chip , microcomputer , integrated circuit | From:SeekIC

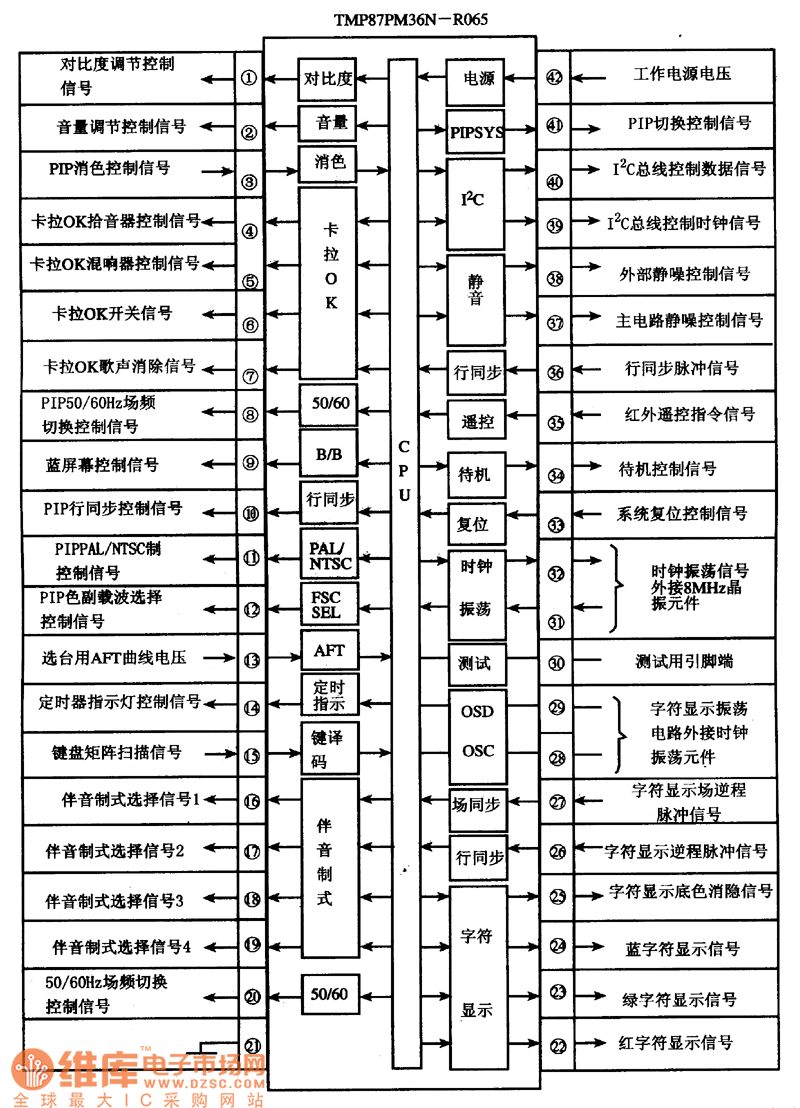

TMP87PM36N-R065 is a single-chip microcomputer integrated circuit produced by Toshiba company, it is widely used in Haier, Toshiba, and other large-screen color TV applications. 1. Features of function TMP87PM36N-R065 is mainly composed of the central processing unit (CPU), clock oscillator circuit, the reset control circuit, remote command signal processing circuit, the key bits command signal decoding circuit, I2C bus control circuit, audio format control circuit, the screen display characters signal generation and processing circuit, and other control and ancillary functions circuits, the internal circuit block diagram is shown as the chart. The circuit block diagram and pin functions and signal flowing of TMP87PM36N-R065 integrated circuit 2. Pin functions and data TMP87PM36N-R065 uses 42-pin dual in IC-style package, the pin functions and signal flowing is shown as Figure, the pin letters code and data are listed in Table. TMP87PM36N-R065 IC pin letter code and data
