THREE_LEVEL_COMPARATOR

Published:2009/6/29 2:12:00 Author:May | From:SeekIC

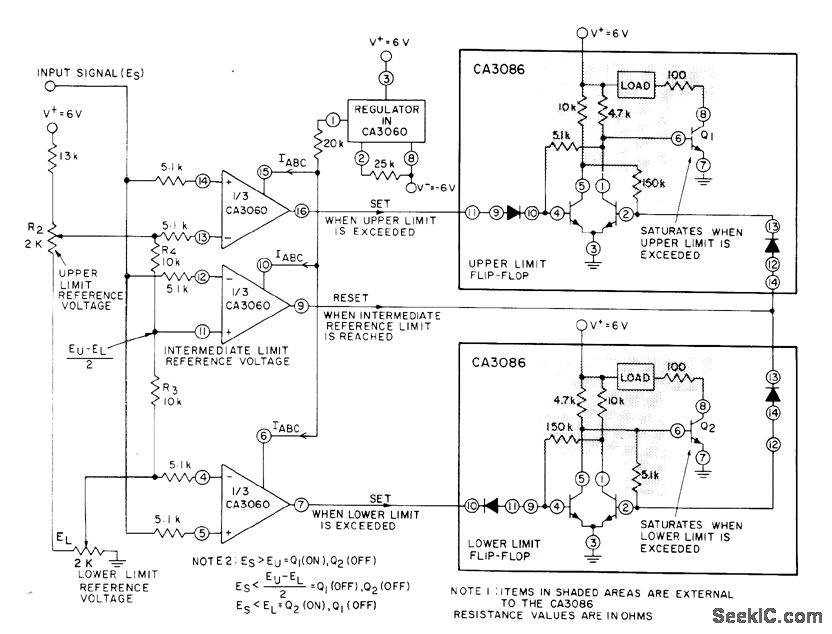

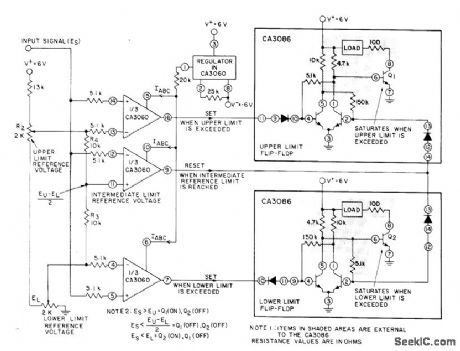

All three sections of CA3060 three-opamp array are used with CA3086 transistor arrays to provide three adjustable limits for comparator. If upprr orlower limit is exceeded, appropriate output is types of industrial control pplications.— Ciractivated until input signal retums to presecuit ideas for RCA Linear ICs, RCA Solid State lected intermediate limit. Suitable for many Division, Somerville, NJ, 1977, p 17.
