THIN_FILM_SENSE_AMPLIFIER

Published:2009/7/12 21:24:00 Author:May | From:SeekIC

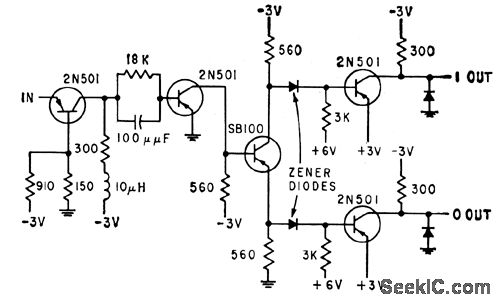

Common-base input stage matches low input impedance of sense winding. 5-mv input signal is boosted to 3-v level. Zener diodes shifl d-c levels of output signal to desired 0 to+3 v level.-E.E. Bittmann, Using Thin Films in High-Speed Memories, Electronics, 32:23, p55-57.
