THIN_FILM_LOG_I_F_AMPLIFIER

Published:2009/7/16 2:34:00 Author:Jessie | From:SeekIC

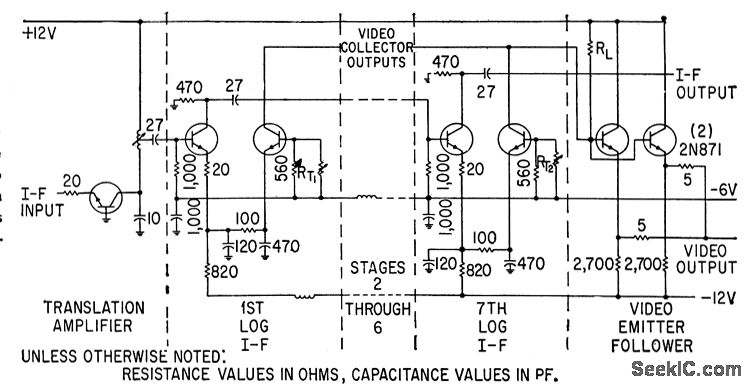

Translation ampliter limits bandwidth at input, while video emitter-follower matches 10-v output to load. All seven log i-f stages use thin-film circuits.-R. Leslie and T. Townsend, Inductors No Problem: New Thin-film Amplifier, Electronics, 36:23, p 46-49.
