TDA8946J two-channel BTL audio power amplifier integrated circuit diagram

Published:2011/5/4 21:34:00 Author:Ecco | Keyword: two-channel, BTL, audio , power amplifier, integrated | From:SeekIC

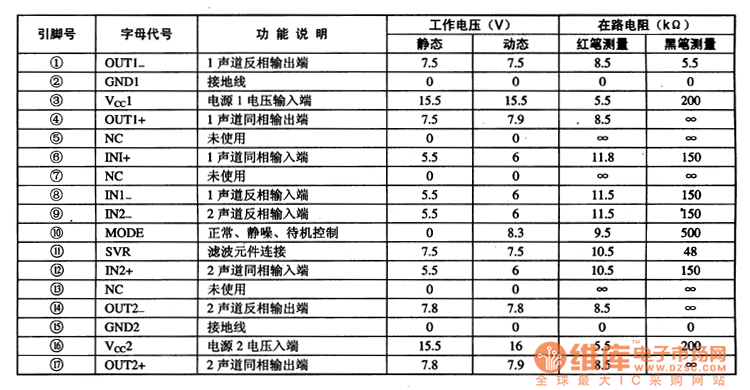

TDA8946J is the BTL is audio power amplifier integrated circuit produced by Philips, it is widely used in high-fidelity home theater, television sound audio, multimedia audio and noon and so on. 1. Features of functionTDA8946J integrated circuit contains two BTL circuit with the same function, static noise and the standby control circuit, thermal protection and short protection circuit. When Vcc = 8V, RL = 8Ω, each channel output power is 15W. 2. Pin functions and data TDA8946J IC uses the package with 17 pin in single row, the pin functions and data are listed in Table 1. Table 1 shows TDA8946J integrated circuit pin function and data.
