TDA8944J two-channel BTL audio power amplifier integrated circuit diagram

Published:2011/6/23 2:49:00 Author:Ecco | Keyword: two-channel , BTL, audio, power amplifier, integrated circuit | From:SeekIC

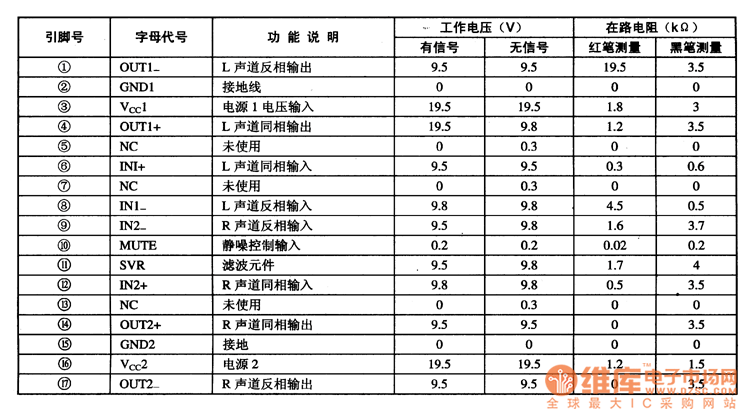

TDA8944J is two-channel BTL audio power amplifier integrated circuit produced by Philips company, it is widely used in various high-fidelity home theater, television, stereo, computer audio. 1. Function descriptionTDA8944J IC has two BTL audio power amplifier circuits with the the same function, it also has a switch function of static noise, and thermal protection, short circuit protection circuit. When the working voltage is 12V, RL = 8Ω, each channel output power is 7W. 2. IC pin functions and data TDA8944J uses 17-foot single-line package, the pin functions and data are listed in Table 1. Table 1 shows TDA8944J pin function integrated circuit and data.
