TDA7495 two-track audio power amplifier integrated circuit diagram

Published:2011/5/17 4:10:00 Author:Ecco | Keyword: two-track , audio, power amplifier, integrated circuit | From:SeekIC

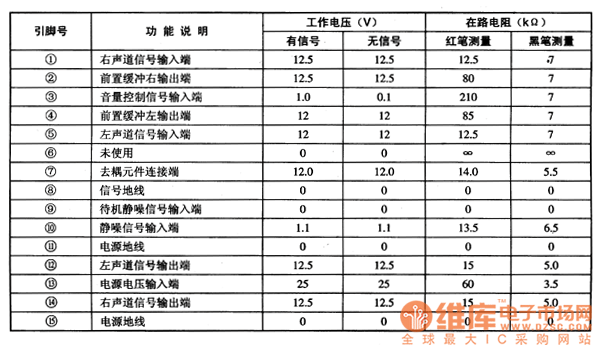

TDA7495 is the two-channel audio power amplifier integrated circuit produced by Philips, it is widely used in home hi-fi, television, stereo, car audio and multimedia audio. 1. The featuresand functionsTDA7495 integrated circuit contains two audio power amplifier circuits with the same features, and it also has two independent mute function with thermal overload protection and short circuit protection, and output power is 20W. 2. Pin functions and data TDA7495 IC uses 15-pin single in-line package, the pin functions and data are listed in Table 1. Table 1 shows TDA7495 integrated circuit pin functions and data.
