TDA7264, TDA7264A AB two-channel audio power amplifier integrated circuit diagram

Published:2011/5/4 3:16:00 Author:Ecco | Keyword: AB , two-channel , audio, power amplifier, integrated circuit | From:SeekIC

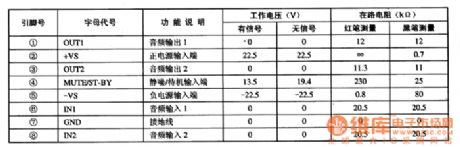

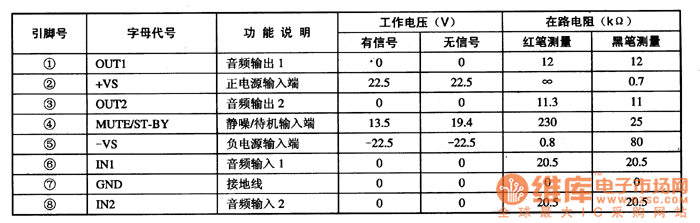

TDA7264, TDA7264A are the two-channel AB audio power amplifier integrated circuits produced by Philips, it is widely used in large screen color television with HID projection. 1. The features of functions TDA7264A is an improved product of TDA7264, the difference is only a few parameters, and other functions and pinout are exactly the same. The inter sets the mute switch, overvoltage and overtemperature protection, and its working voltage can reach 50V, the output power of per channel is 25W. 2. Pin functions and data TDA7264, TDA7264A uses 8-pin package in single row, the pin function and the data are shown in Table 1. Table 1 shows TDA7264A integrated circuit pin functions and data.
