TDA7263AM-the integrated power amplifier circuit of dual channel audio

Published:2011/6/4 7:06:00 Author:qqtang | Keyword: power amplifier, dual channel audio | From:SeekIC

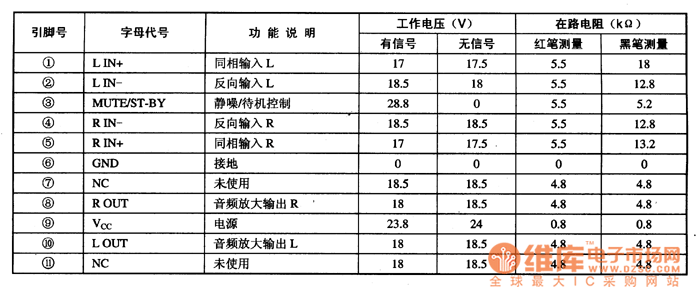

TDA7263AM is an integrated power amplifier circuit of dual channel audio which is produced by Philips Corp., and it is widely used in Haier, Hisense and Skyworth large color TV.1. Pin functionsTDA7263AM consists of two teams of audio power amplifier circuits with same functions, silence/mute circuit or standby control circuit, overheat protect circuit and over-pressure circuit. Its working voltage range is wide, the output power is big(25w for each channel).2.pin functions and dataTDA7263AM is in 11-pin single in-line package.
