TDA6107Q-the integrated circuit of the single chip video amplifier

Published:2011/6/4 7:21:00 Author:qqtang | Keyword: integrated circuit, video amplifier | From:SeekIC

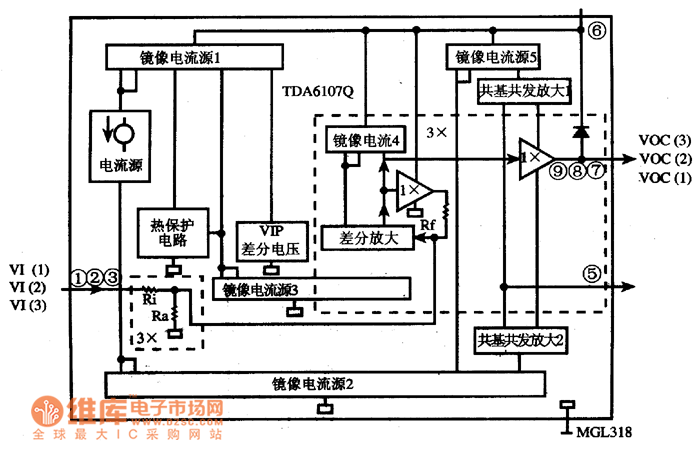

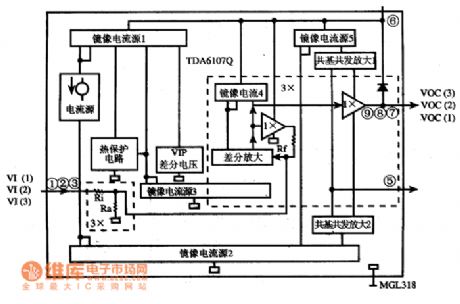

TDA6107Q is an integrated circuit of the single chip video amplifier which is produced by Philips Corp., and it is widely used in large screen color TV.1. Function featuresTDA6107Q consists of 3 lines of primary color(i.e R,G and B) signal amplifiers, it replaces the traditional video amplifiers of 3 separated lines. Its internal circuit is as shown in Figure 1. 2.pin functions and dataTDA6107Q is in 9-pin single-line package, whose pin functions and data are shown in Table 1. Table 1 pin functions and data of TDA6107Q
