TDA2611AQ audio power amplifier IC circuit diagram

Published:2011/9/13 2:29:00 Author:Rebekka | Keyword: audio power amplifier , IC | From:SeekIC

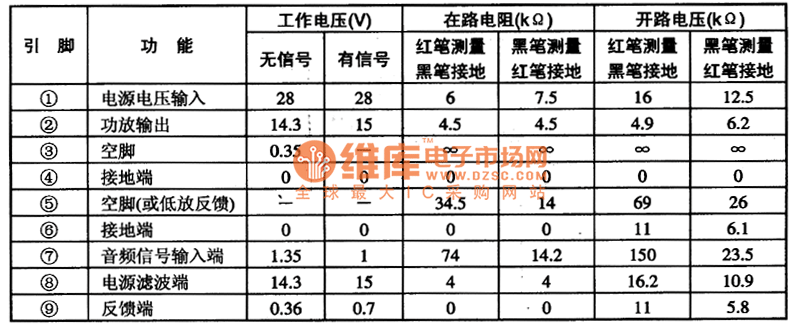

TDA2611AQ is an audio power amplifier integrated circuit produced by Philips of the Netherlands, It is widely used in video, audio, computer audio systems as audio power amplifier. The integrated circuit TDA2611AQ contains audio power amplifier IC circuits, overheating and output short-circuit protection circuit. The connected elements R, C between (5) and (9) feet can increase the input impedance. The IC uses separate 9-pin package, its integrated circuit pin functions and data are listed in Table.
