TDA2050V HiFi amplifier

Published:2012/9/12 20:53:00 Author:Ecco | Keyword: HiFi amplifier | From:SeekIC

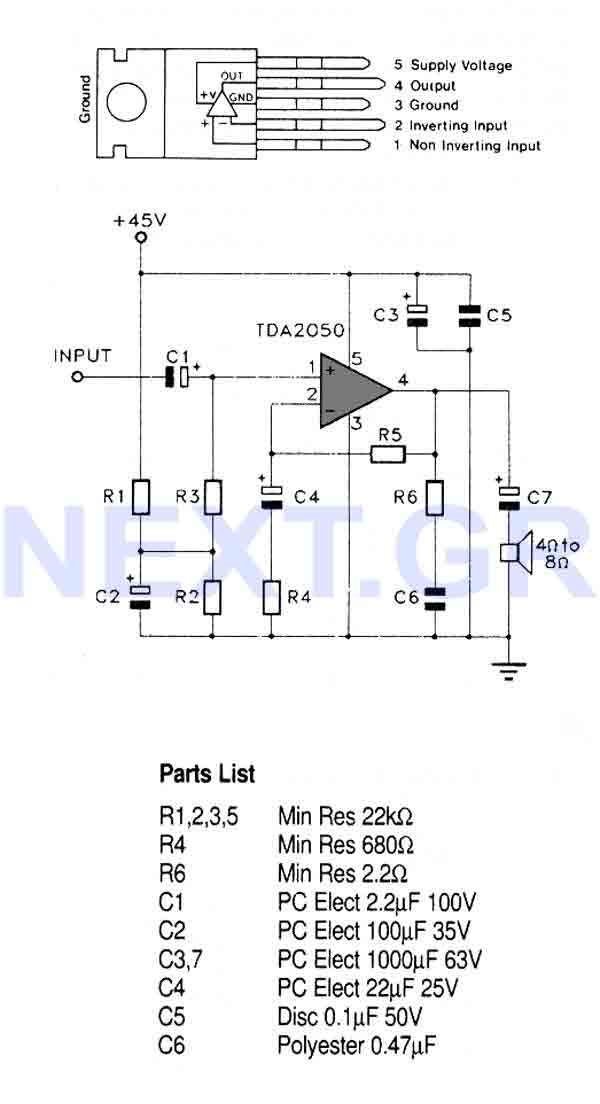

This circuit uses a high quality audio amplifier IC in a 5-pin TO220 package that does not require insulating washers between the metal tab and heatsink in single rail supply applications. The amp can provide 32 watt rms into 4ohm load and 25 watt rms into 8ohm.
