TDA2030 application circuit diagram

Published:2011/3/30 21:19:00 Author:Rebekka | Keyword: application circuit | From:SeekIC

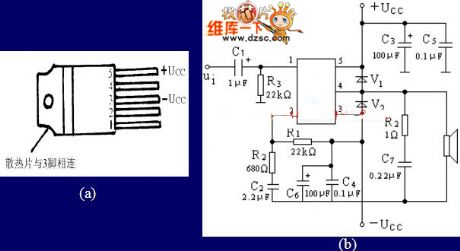

The shape and the pinout of TDA 2030 is shown as figure(a). The integrated amplifier has 5 feet. It has a simple connection line. It can be connected as OCL circuit and OTL circuit. It is widely used in audio equipments. The internal short circuit protection circuit has overheat protection. The main parameters are: power supply 6~18V, output power 9W, input impedance 5MΩ, voltage gain 30dB, harmonic distortion 0.2%. TDA 2030 typical application circuit diagram is shown as below.
