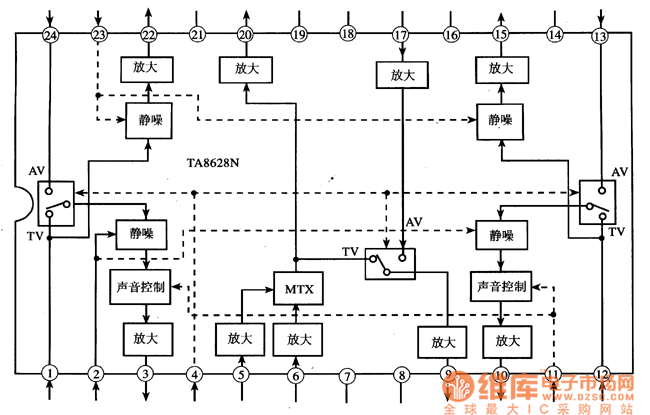

TA8628N is a TV/AV shifting integrated circuit produced by Toshiba, which is widely used in electric equipment in need of audio and video functions, such as large screen color TV, etc.1.function featuresTA8628N includes the signal amplifier circuit, silence/mute control circuit, sound control and relevant additional circuit, whose pin functions are shown in Figure 1.Figure 1. The internal circuit of TA8628N

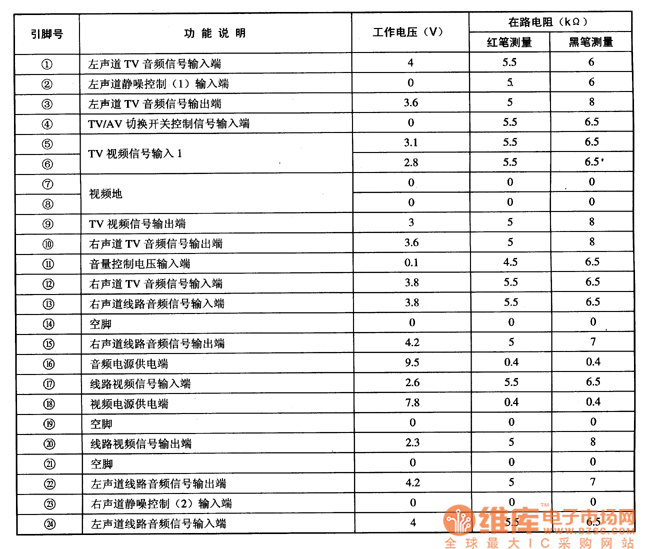

2.pin functions and dataTA8628N is in 24-pin dual in-line package, whose pin functions and data are listed in Table 1.
