TA8256H--the 3 channel audio power amplifier integrated circuit

Published:2011/6/8 20:31:00 Author:qqtang | Keyword: audio power amplifier, integrated circuit | From:SeekIC

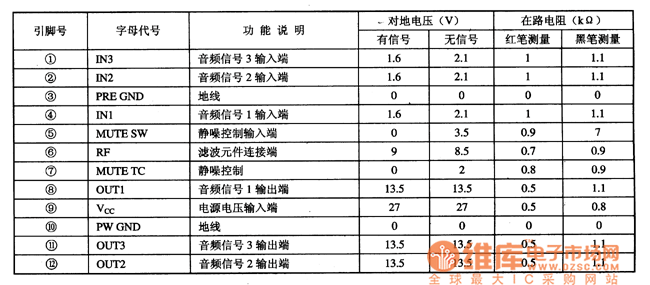

TA8256H is a 3 channel audio power amplifier integrated circuit produced by Toshiba, which is used in the TV stereo, domestic stereo and car stereo, etc.1.function featuresTA8256H contains 3 lines of same function audio power amplifier circuits, and it also has functions of silence/mute protection and over heat/voltage protection. It characterizes wide working range, wide dynamic range, little distortion, weak noise, few external elements and so on.2.pin functions and dataTA8256H is in 12-pin in-line package, whose pin functions and data are listed in table 1.
