TA8248K--the dual channel audio power amplifier integrated circuit

Published:2011/6/8 20:49:00 Author:qqtang | Keyword: audio power, integrated circuit | From:SeekIC

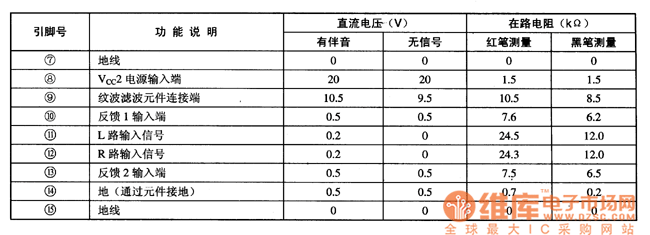

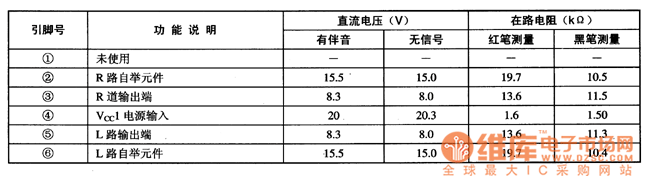

TA8248K is the dual channel audio power amplifier integrated circuit produced by Toshiba, which is widely used in Toshiba, SONY and High-Rover large screen color TV.1. Function featuresTA8248K contains 2 lines of same-function power amplifier circuits, the over heat and short circuit protection circuit and other additional function circuits, etc. And the output power of each channel is about 12W.2.pin functions and dataTA8248K is in 15-pin single in-line package, whose pin functions and data are listed in Table 1.
