TA8223K--the dual channel audio power amplifier integrated circuit

Published:2011/6/8 20:54:00 Author:qqtang | Keyword: audio power amplifier, integrated circuit | From:SeekIC

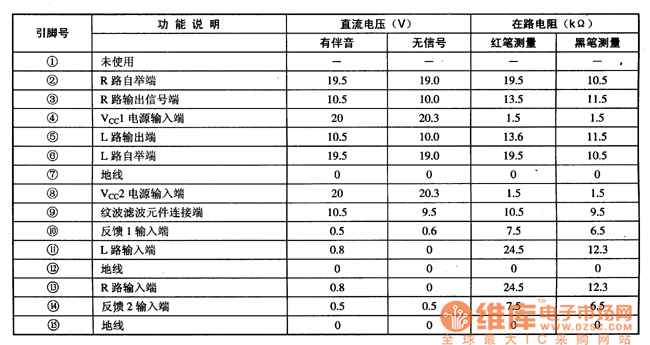

TA8223K is the dual channel audio power amplifier integrated circuit produced by Toshiba, which is widely used in Toshiba, SONY and Changhong large screen color TV stereo systems.1. Function featuresTA8223K contains 2 lines of same-function power amplifier circuits, the over heat and short circuit protection circuit and other additional function circuits, etc. And the output power of each channel is about 10W.2.pin functions and dataTA8223K is in 15-pin single in-line package, whose pin functions and data are listed in Table 1.
