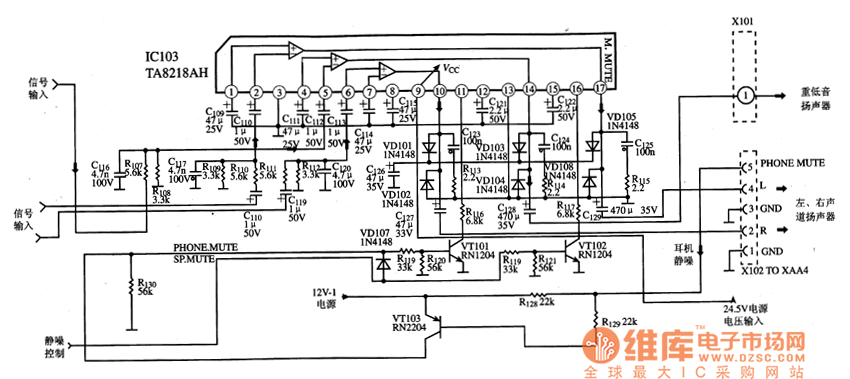

TA8218AH--the 3 channel audio power amplifier integrated circuit

Published:2011/6/9 21:02:00 Author:qqtang | Keyword: audio power amplifier, integrated circuit | From:SeekIC

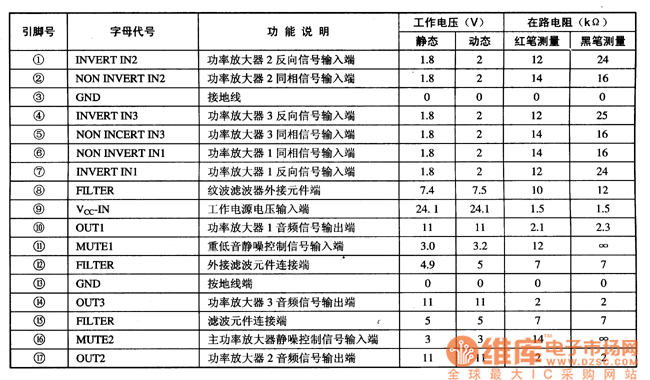

TA8218AH is the 3 channel audio power amplifier integrated circuit, produced by Toshiba, which is widely used in the multimedia stereo, domestic stereo, car stereo and TV stereo, etc.1.functions featuresTA8218AH contains 3 lines of same-function audio power amplifier circuits, and it also has functions of silence/mute protection and over heat/voltage protection, etc.2. Pin functions and dataTA8218AH is in 17-pine package, whose pin functions and data are listed in table 1.Table 1. Pin functions and data of TA8218AH
