TA8211AH--the dual channel audio power amplifier integrated circuit

Published:2011/6/8 21:19:00 Author:qqtang | Keyword: audio power amplifier, integrated circuit | From:SeekIC

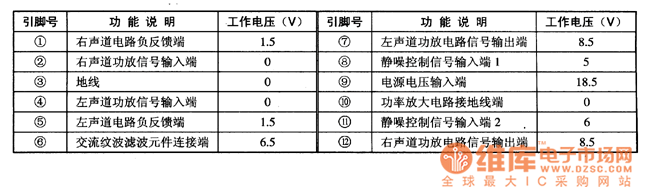

TA8211AH is the dual channel audio power amplifier integrated circuit produced by Toshiba, which is widely used in domestic stereos, computer stereos, TV stereos and so on.1.function features and thetypical application circuitTA8211AH contains the audio power amplifier circuit with left and right(two) channels, silence/mute control circuit and over voltage/heat protecting circuit, etc. Its typical application circuitis shown in figure 1.Figure 1. The typical application circuit of TA8211AH 2.pin functions and dataTA8211AH is in 12-pin single in-line package, whose pin functions and data are listed in table 1.
