TA820OAH--the dual channel audio power amplifier integrated circuit

Published:2011/6/8 21:18:00 Author:qqtang | Keyword: audio power amplifier, integrated circuit | From:SeekIC

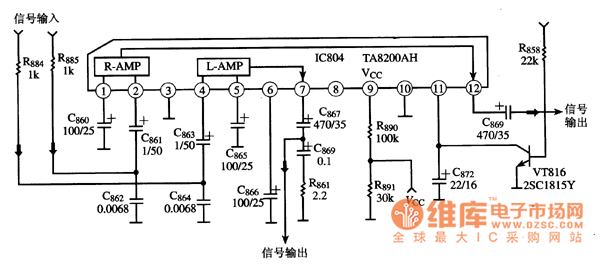

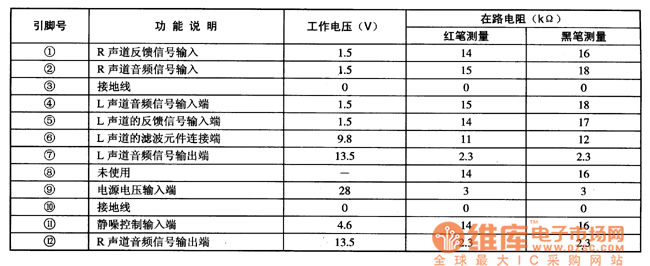

TA820OAH the dual channel audio power amplifier integrated circuit produced by Toshiba, which is widely used in domestic stereos, computer stereos, TV stereos and so on.1.function featuresTA820OAH contains 2 lines of same function audio power amplifier circuits, the silence/mute control circuit and over voltage/heat protecting circuit, etc. Its internal circuit is shown in figure 1.Figure 1. The internal circuit of TA8211AH 2.pin functions and dataTA8211AH is in 12-pin single in-line package.
