TA75558P wide band with double operational amplifiers circuit

Published:2011/7/5 1:12:00 Author:chopper | Keyword: wide band, double operational amplifiers | From:SeekIC

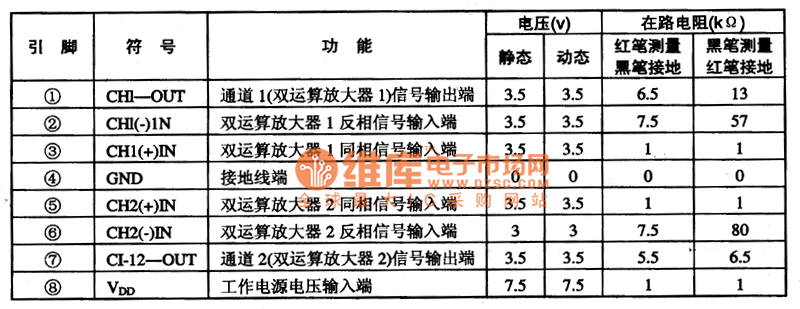

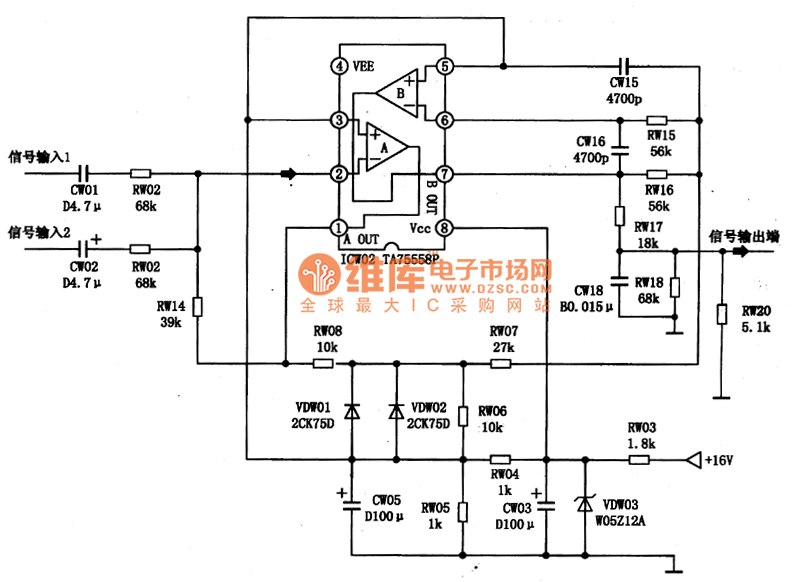

TA75558P is a wide band with double operational amplifiers circuit produced by company TOSHIBA.This IC is applied to the acoustic circuit as comparator or active low-pass filter.1.The inner circuit and function of pins of TA75558PThe inner circuit and typical application circuit of TA75558P integrated package are shown as picture 1.This IC adopts dual inline 8 pinned package.Its function and data of pins of the integrated circuit are shown as chart 1. 2.The typical application circuit of TA75558PTA75558P can be taken as active low-pass filter,The typical application circuit of its integrated package is shown as picture 1.
