TA7550S audio amplifier integrated circuit

Published:2011/4/29 1:30:00 Author:TaoXi | Keyword: audio amplifier | From:SeekIC

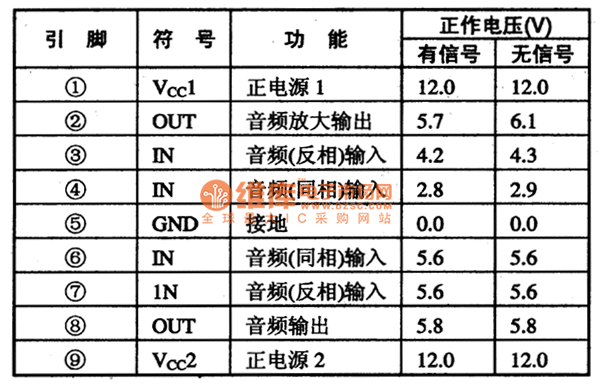

The TA75550S is designed as one kind of audio amplifier integrated circuit which is produced by the TOSHIBA company, and it can be used in large screen and rear projection TV such as the Konka BT5O01 rear projection TV.etc. 1.Features The TA75550S has two-stage amplifier with the same functions. The two-stage op amp only supplies power to TA75550S, so the distortion is very small. 2.Pin functions and data The TA75550S is in the 9-pin single in-line package, and the pin functions and data is as shown in table 1. Table 1 The pin functions and data of TA75550S
