TA7508 quad operational amplifier integrated circuit

Published:2011/6/16 0:52:00 Author:chopper | Keyword: quad operational, amplifier, integrated circuit | From:SeekIC

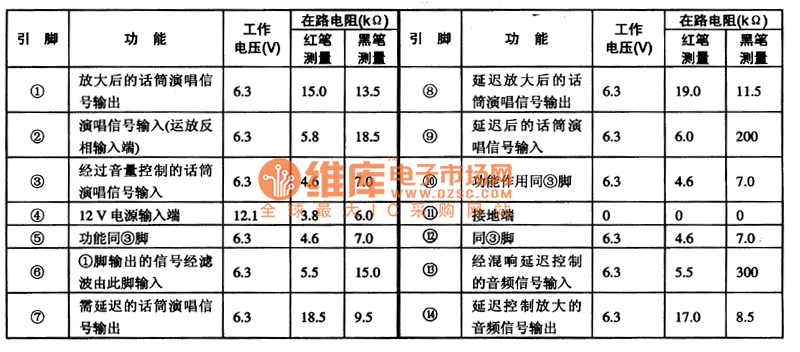

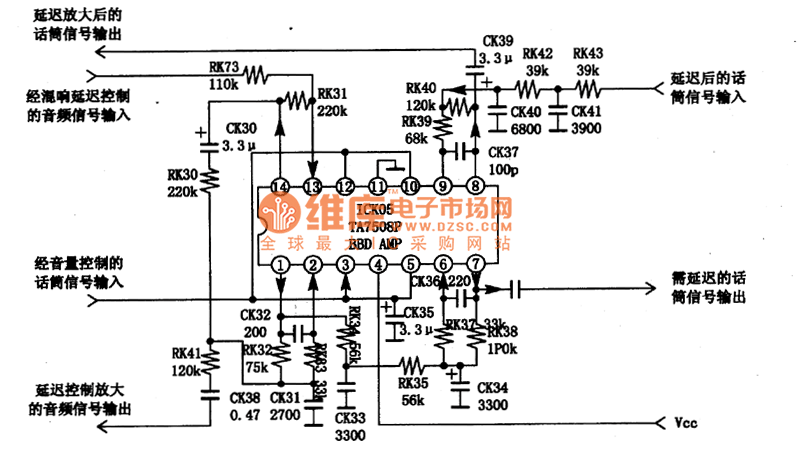

TA7508 is a quad operational amplifier integrated circuit.It belongs to general device.and it is applied to TV acoustics,music center and so on.1.The inner circuit and the function of pins of TA7508 TA7508 integrated package includes four same operational amplification circuit.The inner circuit is shown as the picture 1.This IC adopts the structure of 14 pins biserial plastic package.And it is applied to the Changhong NC-3 cassette mechanism colorcast karaoke circuit.The function and data of pins of integrated circuitare shown as chart 1. 2.TA7508 typical application circuitTA7508 integrated package is applied to the Changhong NC-3 cassette mechanism colorcast karaoke circuit.Its typical application circuit is shown as picture 2.
