Systematic temperature acquisition circuit

Published:2011/6/19 0:54:00 Author:John | Keyword: temperature acquisition | From:SeekIC

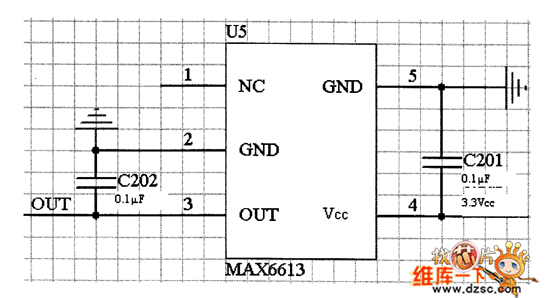

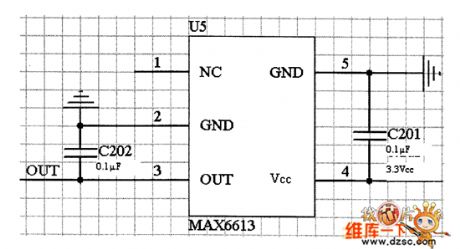

It can be seen through the figure that acquisition circuit is simple and practical.To reduce the effects from the power supply’s input ripple, a 0.1μF capacitor is added on the pin of the power supply so as to achieve filtering function. Thus the disruption for the input end can be reduced. figure: Systematic temperature acquisition circuit
