Summing_scaling_amplifier_using_an_MC1552G

Published:2009/7/21 2:19:00 Author:Jessie | From:SeekIC

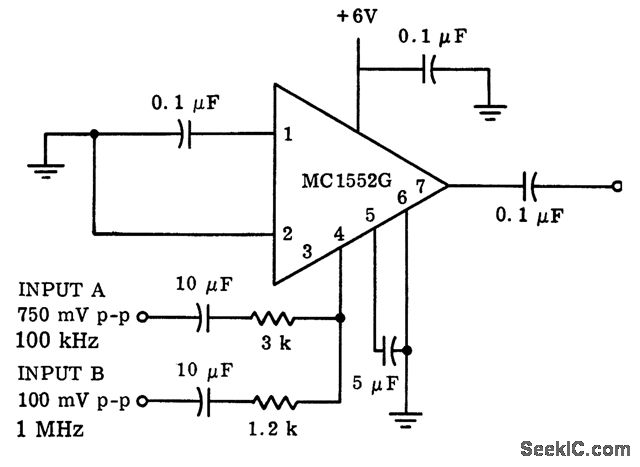

Summing/scaling amplifier using an MC1552G. Scaling considerations are accomplished by adjustment of the input resistors (courtesy Motorola Semiconductor Products Inc.).
