Stereo_tape_system_AF_preamplifier_with_simple_tone_control

Published:2009/7/20 1:38:00 Author:Jessie | From:SeekIC

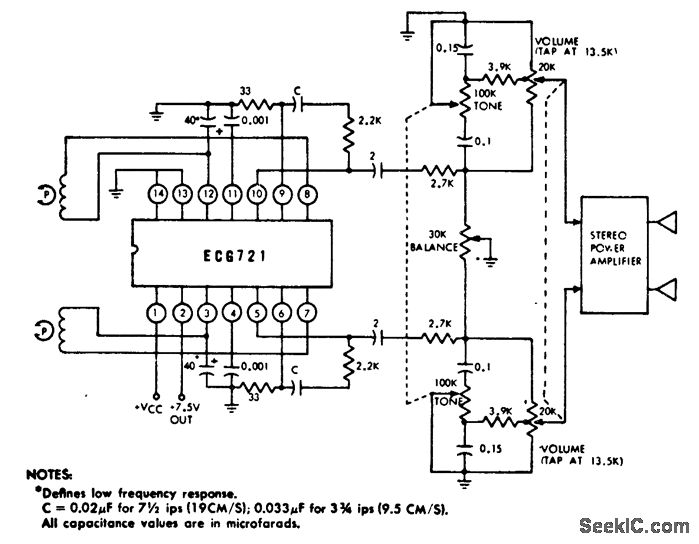

Stereo tape system AF preamplifier with simple tone control. Current drain at 12 volts is typically 16 mA. Voltage gain is 68 dB. Channel separation is typically 60 dB (courtesy GTE Sylvania Incorporated).
