Stereo_phono_AF_preamplifier_with_RIAA_equalization

Published:2009/7/20 1:41:00 Author:Jessie | From:SeekIC

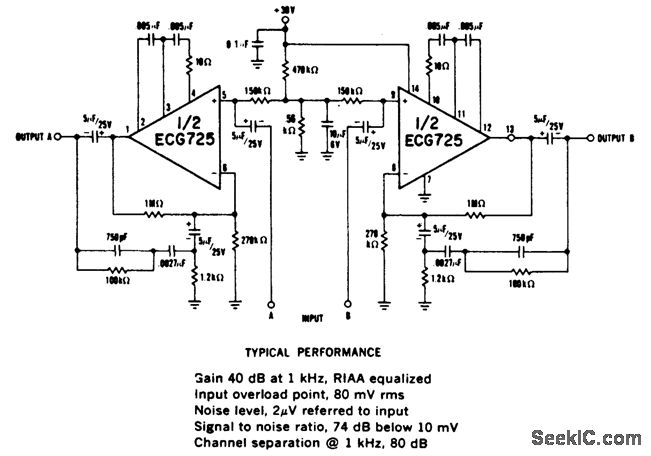

Stereo phono AF preamplifier with RIAA equalization. Gain is 40 dB at 1 kHz with the input overload point set at 80 mV RMS. Noise level is 2 μV referred to the input. Signal to noise ratio is 74 dB below 10 mV. Channel separation at 1 kHz is 80 dB (courtesy GTE Sylvania Incorporated).
