Stereo amplifier circuit

Published:2012/12/21 1:28:00 Author:Ecco | Keyword: Stereo amplifier | From:SeekIC

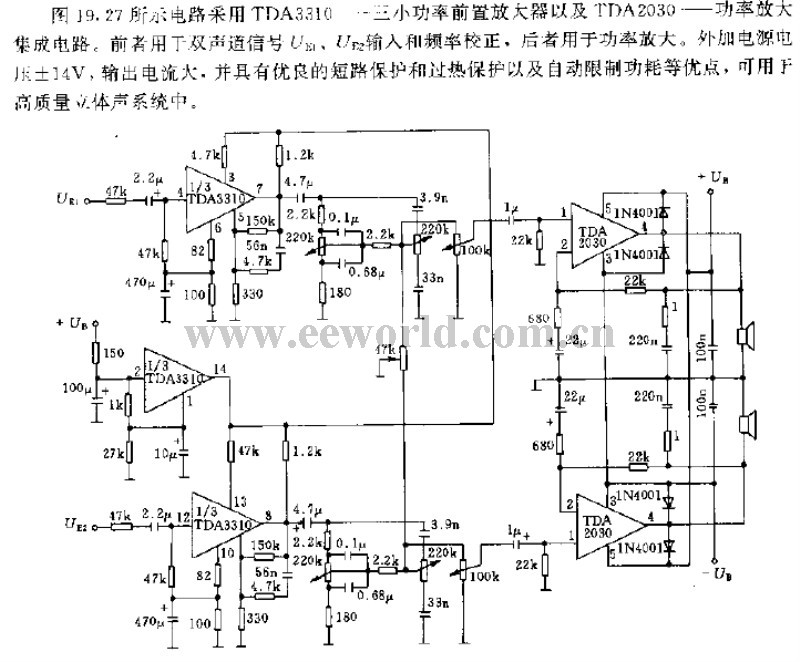

The circuit shown in Figure 19.27 uses low-power preamplifier TDA3310 and TDA2030 power amplifier integrated circuit. The former is used for the dual-channel UE2 and UE2 input and frequency correction, the latter is used for power amplification. External power supply voltage is ± 14V, output current is high, and it has the features of excellent short-circuit protection, overheating protection and automatic limit power consumption, so it can be used in high-quality stereo system.
