Spark 765A amplifier power-amplifier circuit

Published:2011/5/16 9:12:00 Author:Christina | Keyword: Spark, amplifier, power-amplifier | From:SeekIC

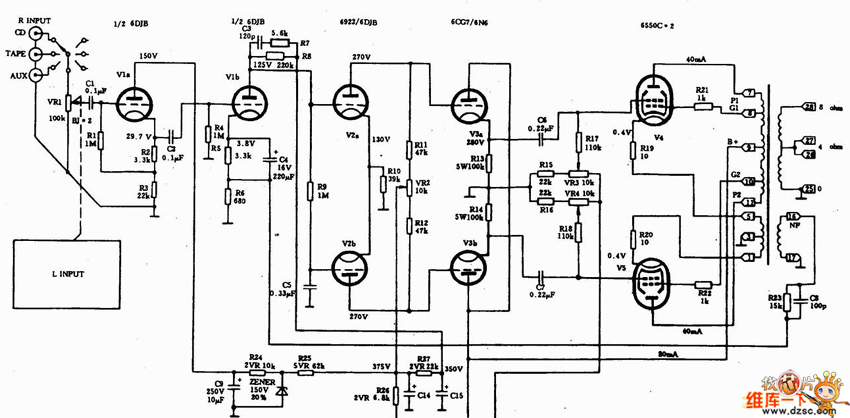

The Spark 765A amplifier power-amplifier circuit is as shown:
