Single tube RC coupling common emitter electrode amplifier circuit

Published:2011/6/13 9:22:00 Author:Christina | Keyword: Single tube, RC, coupling, common emitter electrode, amplifier | From:SeekIC

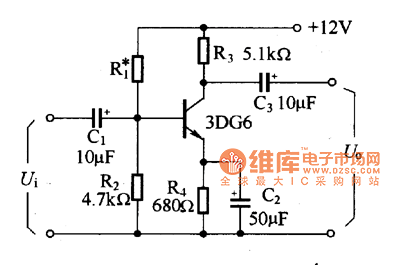

The circuit is as shown in the figure. This circuit can be used in the pre-amplifier stage of the low frequency small signal amplifier. The collector current Ic is 0.5～2mA, you can make the IC in the right position by adjusting R1. Figure The single tube RC coupling common emitter electrode amplifier circuit
