Single chip microcomputer integrated circuit

Published:2011/6/8 1:45:00 Author:Christina | Keyword: Single chip, microcomputer, integrated circuit | From:SeekIC

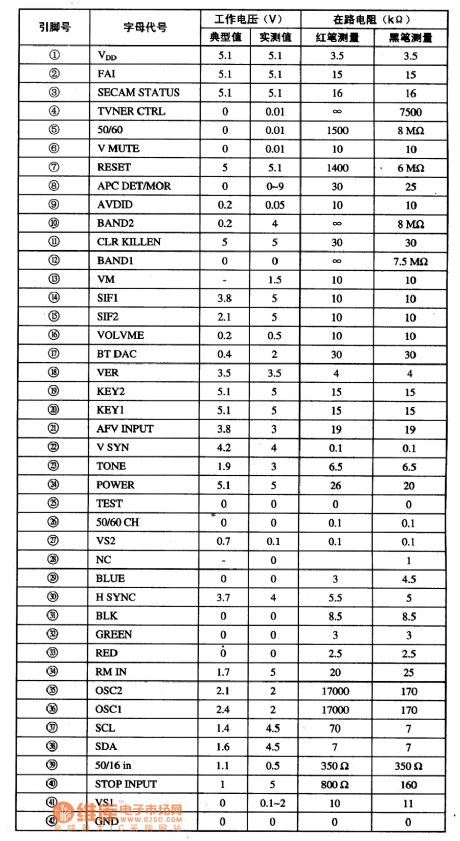

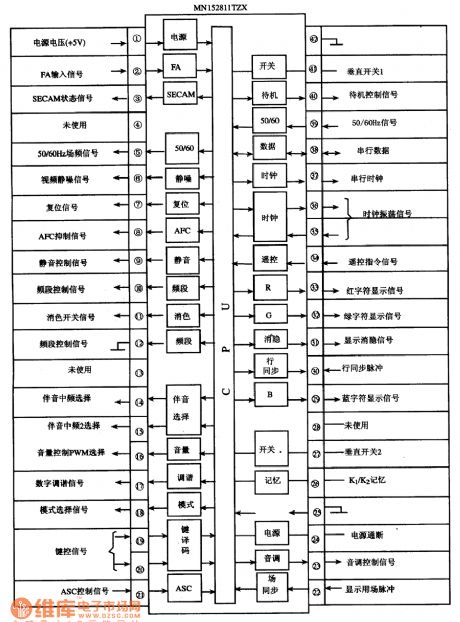

The MNl52811TZX is designed as one kind of single chip microcomputer integrated circuit that is produced by the Panasonic corporation, and it can be used in the domestic and imported color TVs which use the Panasonic machine. 1.Features The MN152811TZX integrated circuit is composed of the central processing unit (CPU), the clock oscillating circuit, the reset control circuit, the key instruction decoder circuit, the I2C bus control circuit, the remote control command signal processing circuit, the screen display circuit, the standby/boot control circuit, the mode selection circuit, the single-frequency control circuit and other control and auxiliary function circuits. 2.Pin functions and data The MN152811TZX is in the 42-pin dual in-line package, the internal circuit block diagram and the signal flow are as shown in the figure, the pin-letter code and the data is as shown in the table. The internal circuit block diagram and the signal flow of the MN152811TZX The pin-letter code and the data of the MN152811TZX
