Single_chip_audio_amplifier_BTL_stereo_3_W

Published:2009/7/24 Author:Jessie | From:SeekIC

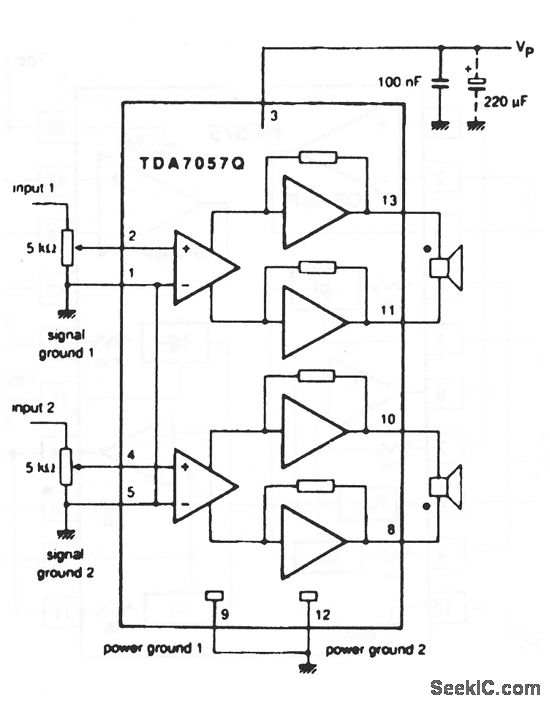

This circuit is similar to that of Fig. 1-27, except that no built-in volume control is provided, and two (stereo) channels are available. The supply range is from 3 V to 18 V. The circuit provides a 3-W per channel output, with an 11-V supply, into 16-Ω loads. Fixed, closed-loop voltage gain is 39 dB (1-V supply, 16-Ω load).
