Single_chip_audio_amplifier_BTL_mono_3_W

Published:2009/7/23 23:59:00 Author:Jessie | From:SeekIC

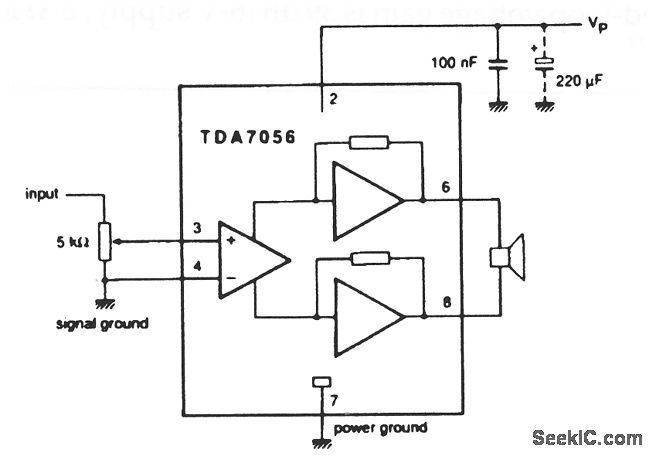

This circuit is similar to that of Fig. 1-27, except that no built-in volume control is provided. The supply range is from 3 V to 18 V. The circuit provides an output of 3 W, with an 11-V supply, into a 16-Ωload. Fixed, closed-loop voltage gain is 39 dB (11-V supply, 16-Ω load).
