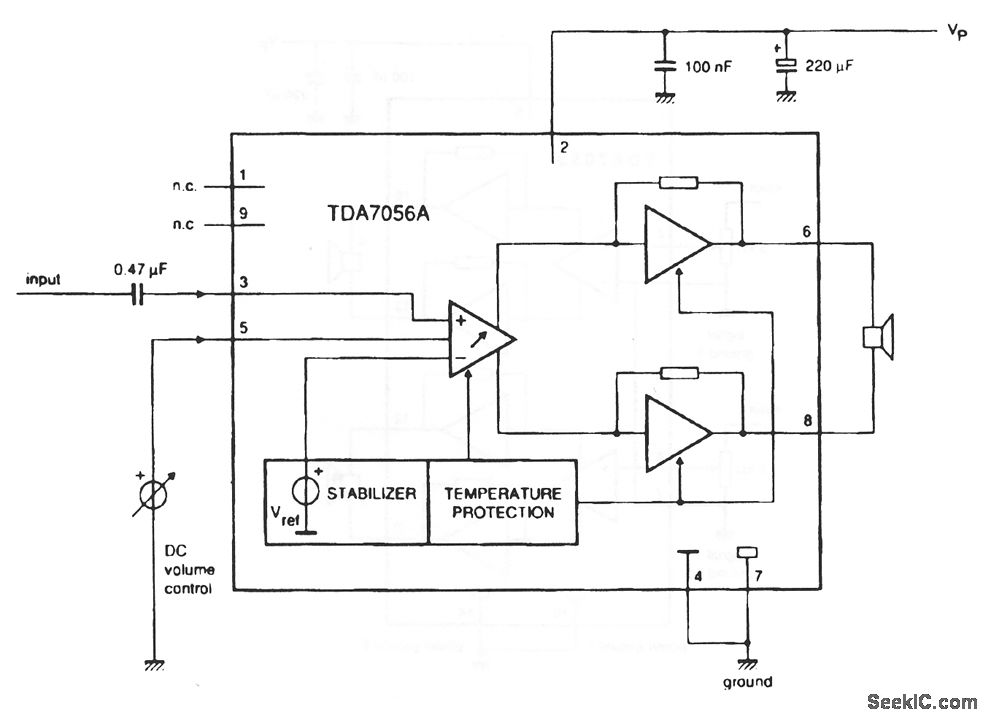

Single_chip_audio_amplifier_BTL_3_W_with_volume_control

Published:2009/7/23 23:59:00 Author:Jessie | From:SeekIC

This circuit is similar to that of Fig. 1-27, except that the output is 3.4 W with a 12-V supply, into a 16-Ω load
