Single_amplifier_VC0

Published:2009/7/17 3:26:00 Author:Jessie | From:SeekIC

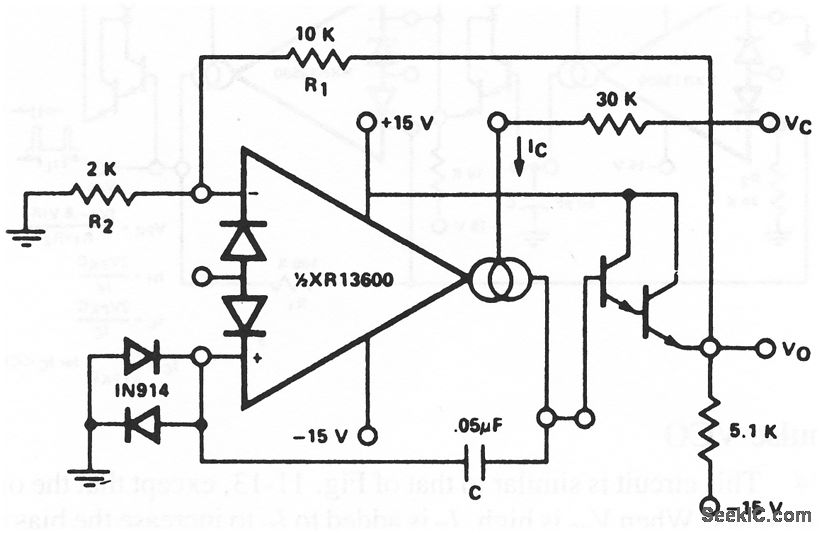

This circuit uses only one section of an XR-13600 (Fig.11-1B) to form a VCO. The remaining section can then be used for another purpose. EXAR Corporation Databook 1990 p 5-255
