Sample_hold

Published:2009/7/17 3:44:00 Author:Jessie | From:SeekIC

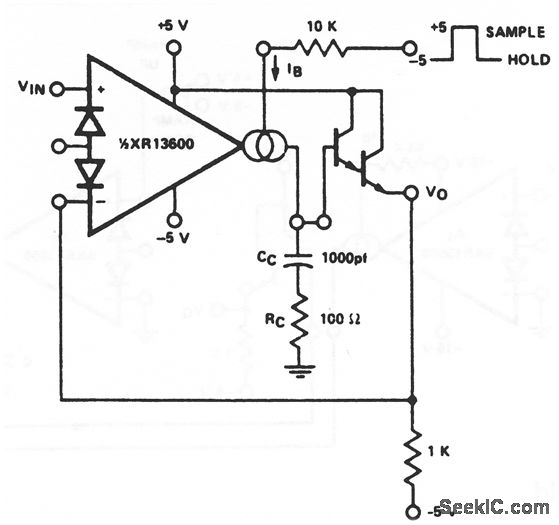

Although only one section is shown, this sample/hold circuit requires that the Darlington buffer be used from the other half of the package, and that the corresponding amplifier be biased on continuously. EXAR Corporation Databook, 1990, p 5-257.
