SYNCHRONOUS_SWITCHING_BOOSTS_VOLT_AGE_GAIN

Published:2009/7/17 1:49:00 Author:Jessie | From:SeekIC

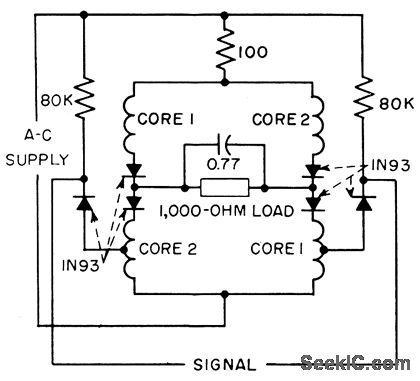

Synchronously switched biased diodes insert impedance in control circuit during power half-cycle. During reset half-cycle bias rectifiers conduct and signal is applied directly across control windings to increase gain by factor of four.-J. Markus, Handbook of Electronic Control Circuits, McGraw.Hill, N.Y., 1959, p 115.
