STV9306 field scanning output integrated circuit

Published:2011/6/14 8:50:00 Author:chopper | Keyword: field scanning, output, integrated | From:SeekIC

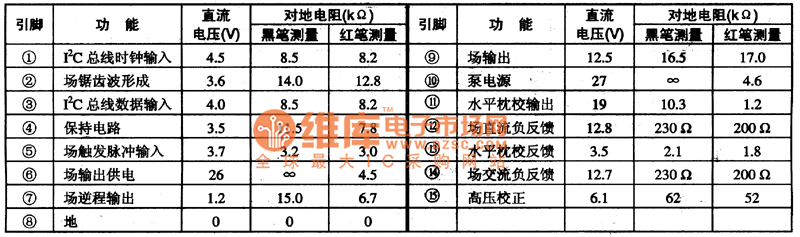

STV9306 integrated circuit is a field scanning output integrated circuit and it is applied to Changhong large-screen color TV widely.1.function characteristicsSTV9306 integrated circuit includes I2C bus interface circuit,field sawtooth wave shaping circuit,field output amplifition circuit,field blanking signal shaping circuit,horizontal pincushion processing circuit and so on.2.function and data of pinsThe function and data of pins of STV3906 integrated circuit are shown as chart 1.
