STRETCHER_EXPANDER

Published:2009/7/17 2:03:00 Author:Jessie | From:SeekIC

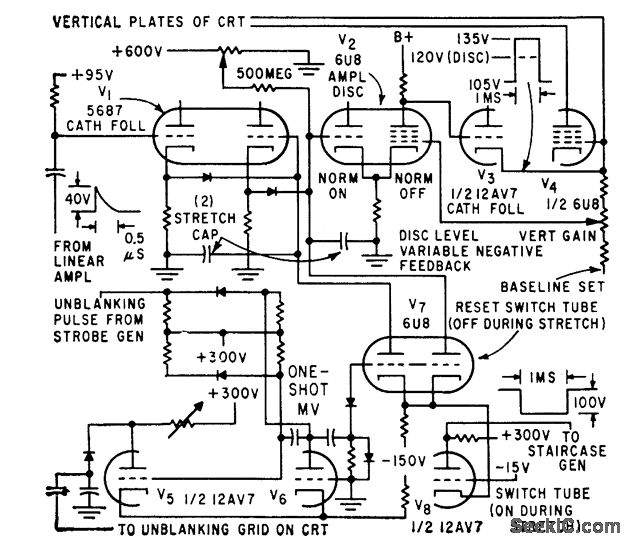

Produces dot pulse and inverted for push that unblanks crt screen and advances staircase.0.5-microsec pulse from linear amplifier is stretched to 2-millisec pulse, amplified and inverted for push-pull crt deflection.-W. E. Bushor, Sample Method Displays millimicrosecond Pulses, 32:31, Electronics, p 69-71.
