STAIRCASE_USES_THREE_OPAMPS

Published:2009/7/10 5:47:00 Author:May | From:SeekIC

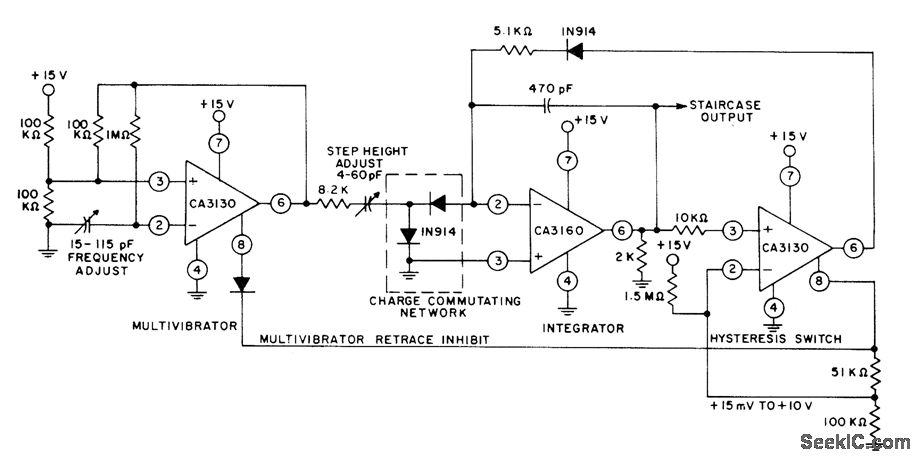

Two CA3130 bipolar MOS opamps serve as multivibrator and hysteresis switch, while CA3160 is connected to generate linear staircase wave-form.- Circuit Ideas for RCA Linear ICs, RCA Solid State Division, Somerville, NJ, 1977, p 6.
