STABILIZED_DIRECT_COUPLED_A_C_AMPLIFIER

Published:2009/7/10 1:47:00 Author:May | From:SeekIC

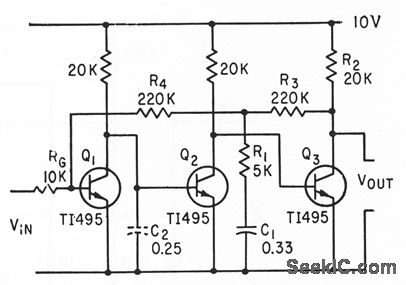

Current-derived stabilization gives simple ampliler using only one capacitor. Adding C2 improves stability but lowers cutoff frequency.-P. Laakmann, Direct Coupling Shrinks Amplifer Size and Cost, Electronics, 36:12, p 66-48.
